Panel Randomization

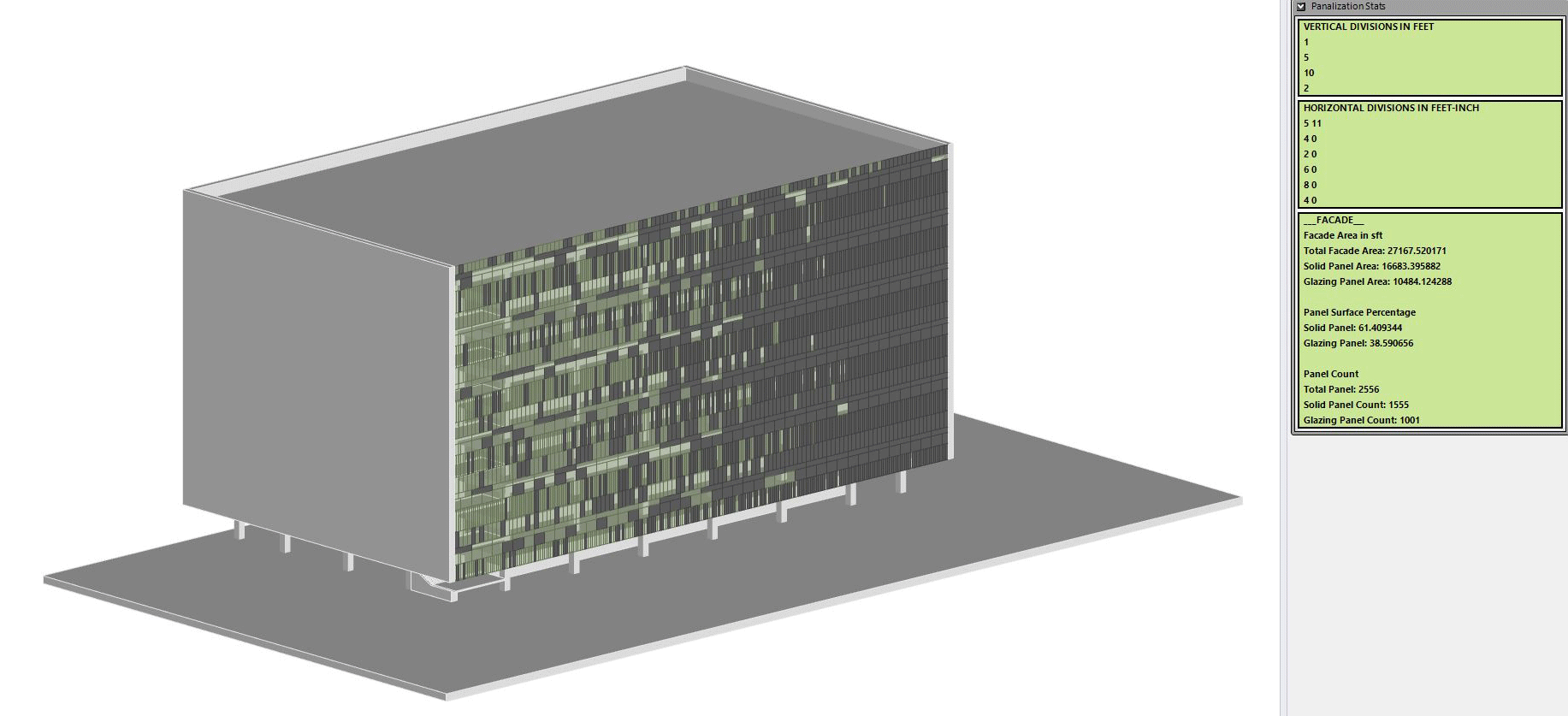

This exercise generates a randomized solid vs glazing pattern on a facade influenced by multiple Attractor points. Some of the primary moves were to sort the panels into separate groups, creating variations in panel size, generating input values for solid vs. glazing percentage, and determining the position of the attractor points. The panel grouping were mostly created based on the floor levels, structural grids, building core location, etc. The solid vs. glazing ratio was determined by an input value. To control the solid vs. glazing ratio, the script comes with two options- The User Defined and The External Weather Data.

View Skin Model in SketchFab

Iterations

Height variation

Iteration 2.1

Iteration 2.2

Iteration 2.3

Panel dispersion- Sine curve projection, 1/2 cycle

Iteration 3.1

Iteration 3.2

Iteration 3.3

Panel dispersion- Sine curve projection, Variable cycles

Iteration 4.1

Iteration 4.2

Iteration 4.3

Iteration 4.4

Elevation

Elevation

Status

Work in Progress
